MetalFab
for steel construction projects
Draw and change quickly.
Access the materials list instantly.
or scroll down to read more
Your metal construction project in 4 steps
Design
Create 3d objects
▶ easily
▶ quickly
Edit
Change if needed
▶ adjust size
▶ change length
List
Bill of Materials
▶ on click
▶ no mistakes
Document
Present it
▶ numbering
▶ make it fast

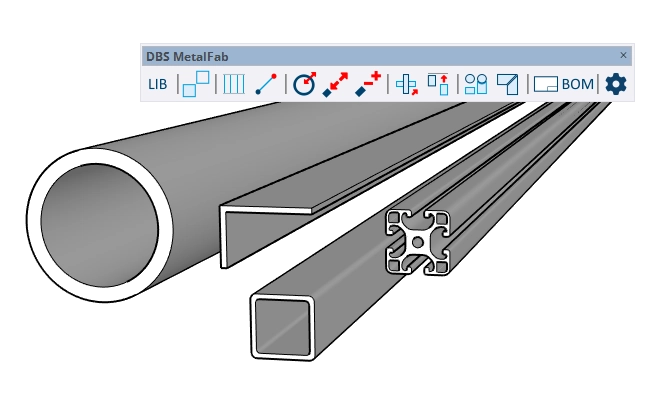

MetalFab
The new SketchUp extension for the Metal Fabrication industry
Application Areas
● design
● fabrication
● construction
Capabilities
● draw steel construction
● standard & custom profiles
● add plates (planned feature)
● make holes (planned feature)
● editing
● reporting

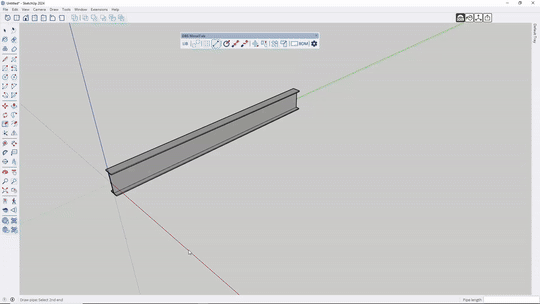

Quick look
What users say
50% of my job is modeling steel structures. This extensions has saved my HOURS. Now that I got the hang of it, I'm pumping out structures with thousands of feet of steel. Daniel, the creator, was also super helpful when I requested a merge co-linear lines option. This cuts out the need for any other nesting software for build sheets as well. I just click "Bill of Material" and print it off for the shop. Super easy.
Nolan
Rockwerx
We're really happy with this extension. Once we found it, it was easy to use and saved us a lot of time. We hope you can add a few more features to make it even better!
Frank
PipeWorx
The extensions are super convenient to use and help my workflow.
Thanks!
Martin
Scenografique LLC
DBS plugins are brilliant and can be used for variety objects of Building and Civil
Engineering projects.
We use DBS plugins for making 3D modelling of Reinforced structures, Steel columns and
Beams of Steel Buildings.
As well as Concrete Pad and Strip foundations and slab objects.
They are very helpful.
Majid
Civil Engineering
Do you struggle with?
Creating tubes and profiles from scratch for new projects?
Recalling the correct dimensions for profiles?
Placing profile objects in 3D space?
Aligning connected profiles?
Performing repetitive tasks on numerous tubes individually?
Time-consuming counting?
Working hard to avoid mistakes when preparing material lists?
MetalFab extension addresses all these challenges, freeing you from these concerns!
Would you like to...
● work fast
● avoid mistakes
● make the project done
This is your solution!
To see what this SketchUp plugin can do, try the FREE 14-day trial.
Install the extension, work on your project, and evaluate the software yourself.
It's free and ready for you to use.
Licenses
MetalFab
SketchUp extension
1 Month
Buy now!
For a short-term project
$7 + tax
$7 / month
license for
1 User
MetalFab
SketchUp extension
3 Years
Buy now!
Long term deal
$147 + tax
~$4 / month
license for
1 User
These licenses are a one-time purchase, not a subscription.
There are no automatic renewals.
Your access is time-restricted, giving you complete control over your purchase and the freedom to renew only if needed.
Extension requirements
- SketchUp versions: 2021, 2022, 2023, 2024, 2025
- Operating systems: Windows, Mac OS
- Internet connection required during use
Additional information
- The extension license allows it to be used on one user station at a time (the station can be switched to another one).
- The license activates with the first use session and lasts for the selected duration.
Why the time restricted license?
To provide users with reliable and useful software at this moment, this is the only way to
achieve that.
The goal is to update this plugin as often as possible, incorporating functionalities suggested
by real users.
It all takes time.
Time is money.
This is my offer for you,
and I would love to move this project forward thanks to your participation!
